PDTPhonon Diagnostics Technique real-time inspection

Real-time inspection of pipelines, tanks, vessels, heat exchangers, boilers, offshore platform legs and risers, without interfering with the operating process.

Request a quoteTechnical documents

Storage tank fitted with PDT sensors connected to a monitoring station
100%
Coverage of the inspected object
Real time
Results
1973
First used
1997
In commercial use since

Overview

Phonon Diagnostics Technique (PDT) is a cutting-edge technique in the NDT market. It enables real-time inspection of pipelines, tanks and vessels, heat exchangers, boilers, offshore platform legs and their equipment, risers and more, without interfering with the operating process. PDT detects metal loss, leaks and cracks as they happen.

PDT was first used in 1973 in the Soviet military industry, to test nuclear submarines at the SEVMASH plant in Severodvinsk, Russia. In 1997 DIATECH acquired the patent and introduced the technique for commercial use.

Advantages of PDT inspection

  • No interference with operations

    Inspection runs while the process keeps operating.

  • Real-time inspection

    Defects are reported as they are detected.

  • Metal loss, leaks and cracks

    Detects all three defect types.

  • Hard-to-reach facilities

    Inspects equipment that other methods cannot easily access.

  • Full coverage

    Covers 100% of the inspected object.

  • High accuracy

    Detects defects with high accuracy.

  • Minimal preparation

    Requires only minimal preparatory work.

Diagrams

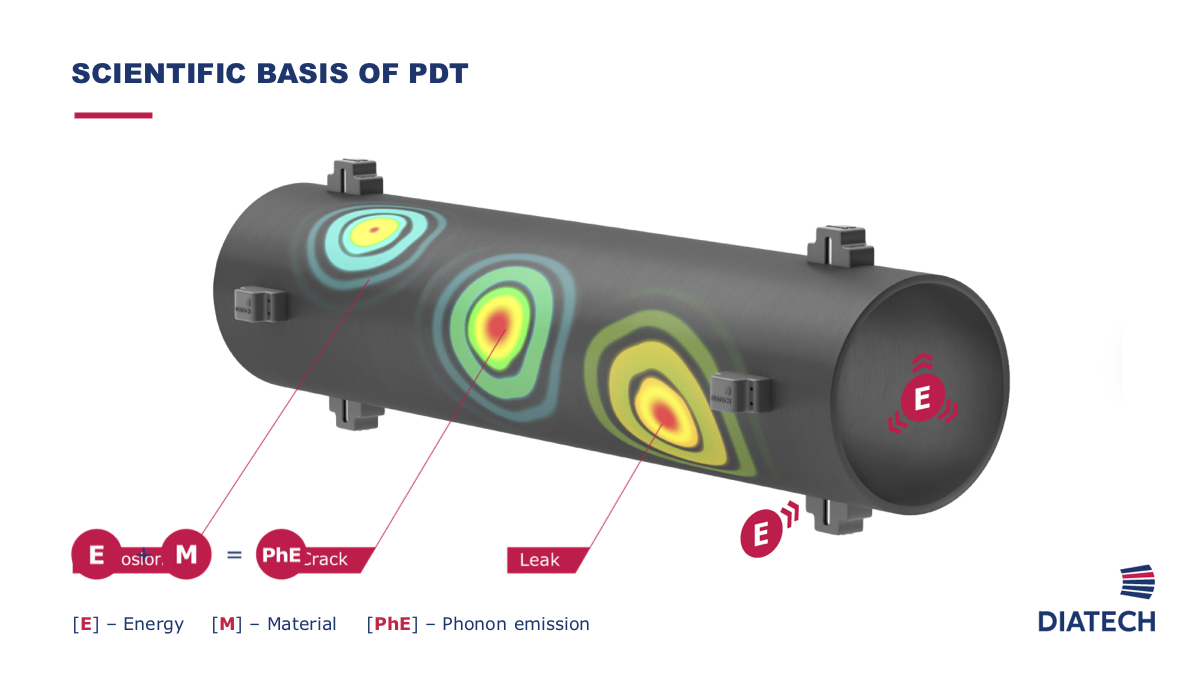

Diagram of the scientific basis of PDT
Scientific basis of PDT

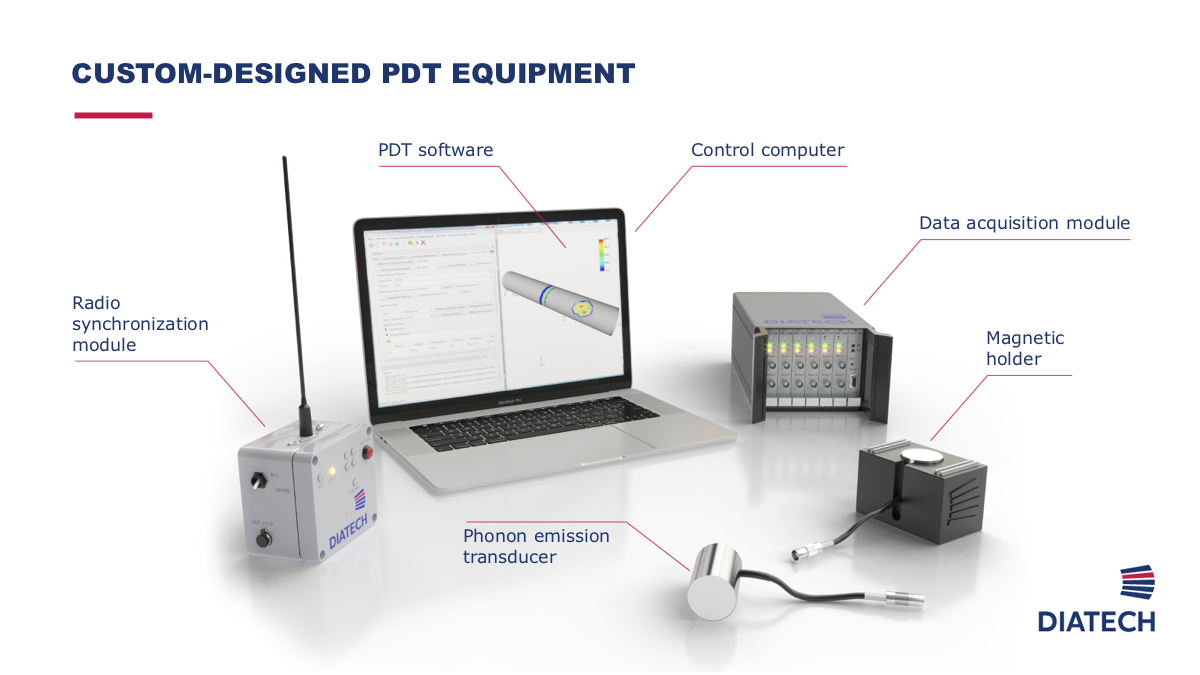

Custom-designed PDT sensors and recording equipment
Custom-designed PDT equipment

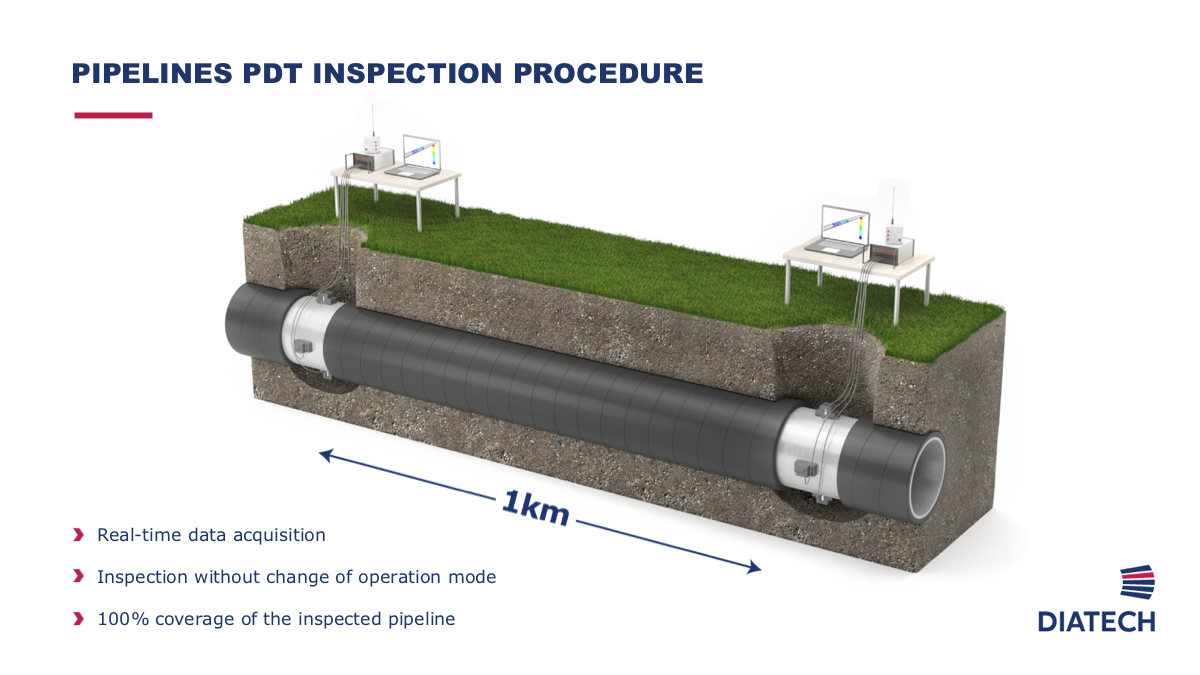

Diagram of the pipeline PDT inspection procedure
Pipeline PDT inspection procedure

Technology partner

DIATECH logo

DIATECH holds the worldwide patent for PDT and is the sole provider of the technology. El-Eman is the exclusive supplier of PDT inspection services in Egypt.

Visit the DIATECH website

Technical documents

Get a quote for PDT

Tell us about the asset and its location. We will reply with scope and pricing.

Email info@elemancs.comCall +20 13 341 4420
